REG-2D
Product Description

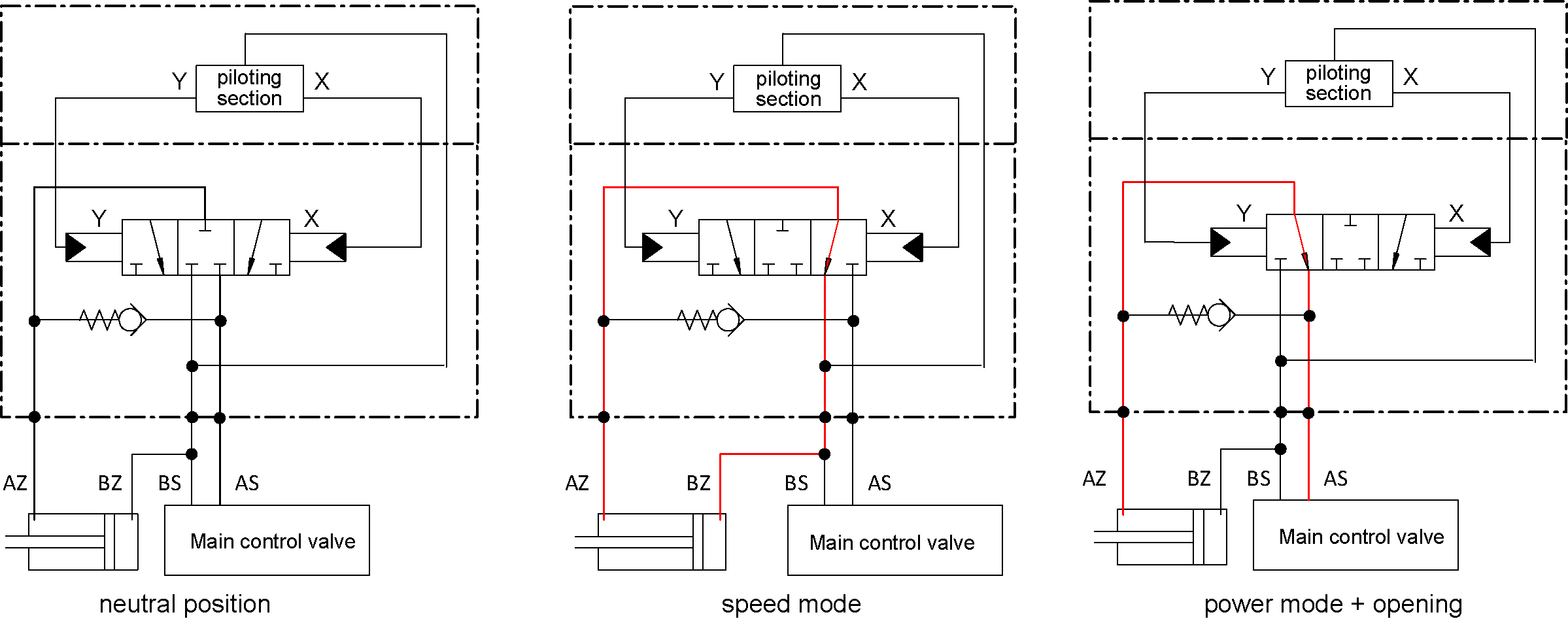

The valve consists of a main valve that connects either piston rod and bottom side (speed mode) or piston rod side and return (power mode). The valve is operated by a flanged pilot valve, which switches from speed mode to the power mode at an adjustable pressure. If the power mode is engaged, it remains switched on due to a desired hysteresis of the valve until the inlet pressure falls to approximately 1/10 of the switching pressure. A non-return valve ensures that only minimal pressure losses occur when the shear is opened.
Characteristics
- Robust construction
- Can be used in scrap and concrete shears
- Flanged or with SAE connncetions
- Automatic switching between speed mode and power mode
- Low pressure losses
Technical specifications
Application
- Scrab and concrete shears
