Flow Control Valves

The flow control valves regulate and limit the volume flow to the connected consumer.

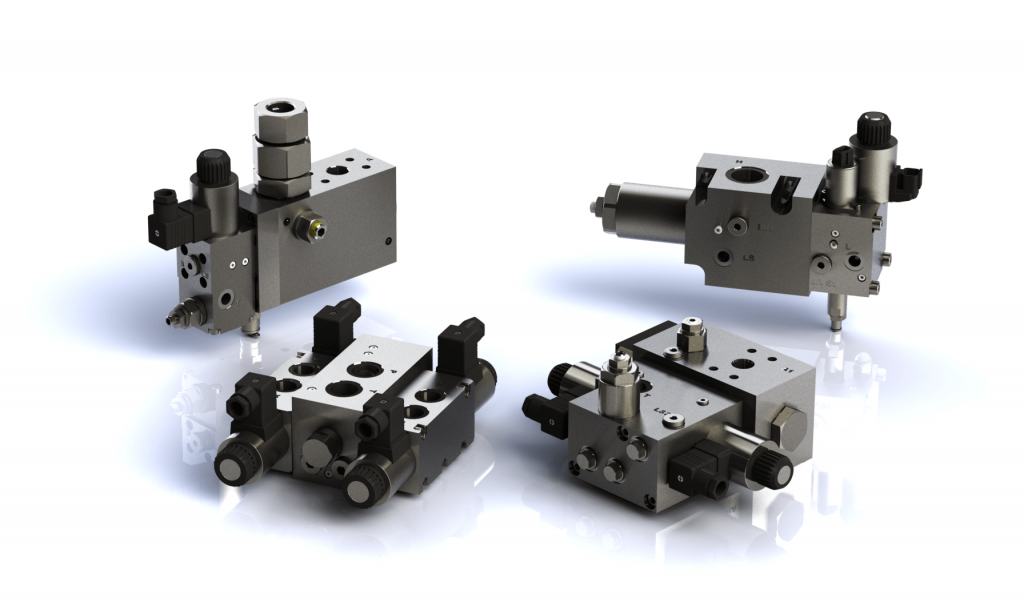

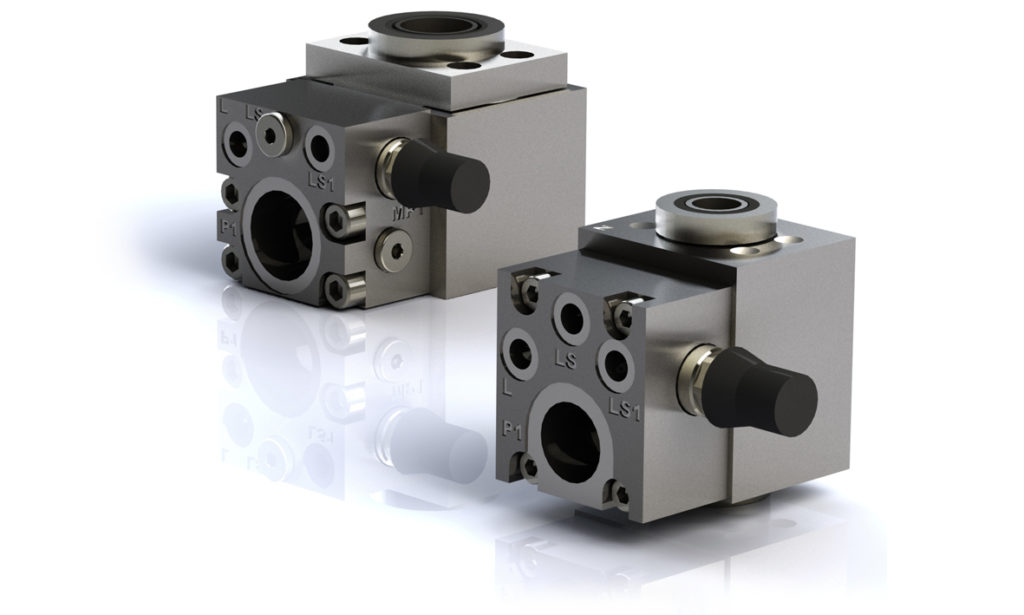

Flow Control Valves

WESSEL-flow control valves regulate and limit the volume flow to the connected consumer. These valves compensate changing pump or load pressures and thus always provide the same volume flow to the consumer, whereby its speed remains constant.

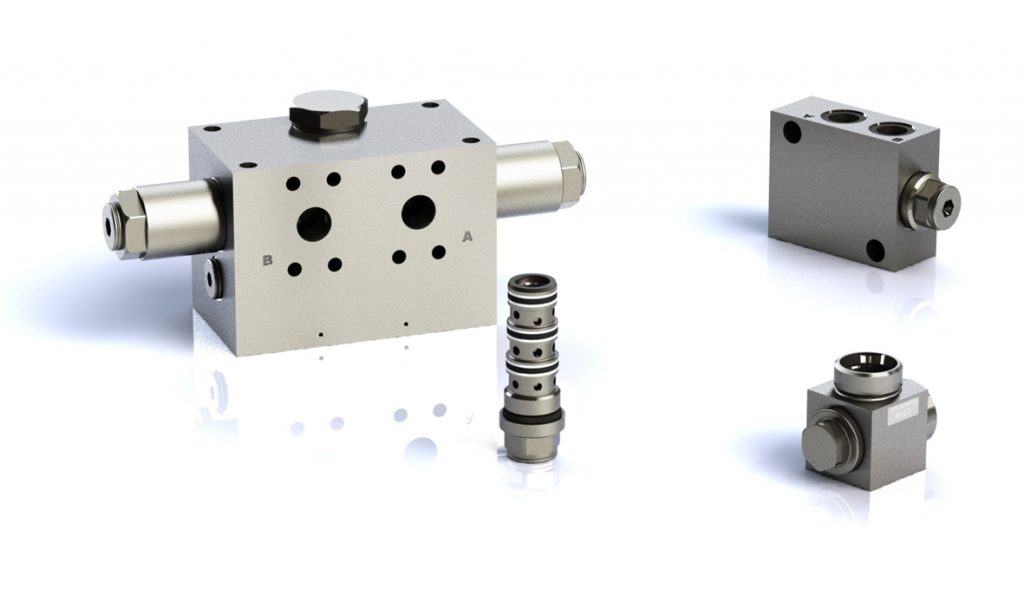

Flow Divider

WESSEL flow divider valves divide the input volume flow in a specific ratio into two partial volume flows. The partial volume flows can have the same value or different, but the division ratio remains constant regardless of the difference between the inlet pressure and the load pressures.

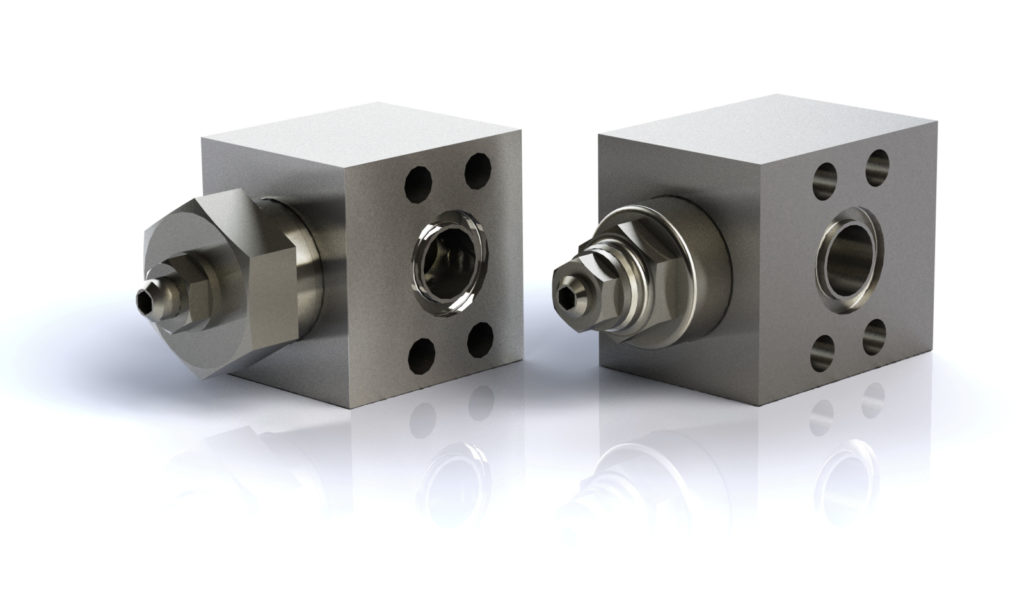

Throttle Check Valve

The throttle check valve TCV is generally suitable for setting the movement speed in a certain flow direction. Another application is to prevent cavitation and thus too high extending speed of cylinders, which are caused by pulling loads.

Priority valve

The priority valve is used to supply an additional consumer with a preferred volume flow. The residual volume flow is provided to supply the existing main functions on the machine. The priority valves are suitable for open-center and closed-center systems.
