WESSEL PRESSURE RELIEF VALVE TYP PRV-1PI
PRV-1PI
Product Description
The pressure relief valve PRV-1PI is a pilot-operated pressure relief valve, which is suitable for various applications. Valves of this design are offered as screw-in cartridges and with different functional housings.
Characteristics
- Cartridge valve
- Can be combined with different housings
- Mechanically or electrically adjustable
- Pressure resistance up to 400 bar
- Flow rate up to 400 l / min
Technical specifications

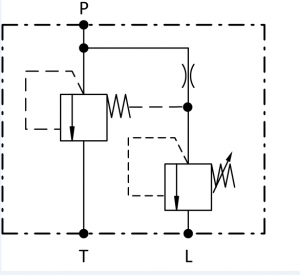

| Design | Function | Hydraulic schematic | P max, Q max | Adjustable range | Cavity |
|---|---|---|---|---|---|
| PRV-1PI | manually adjustable preset 200bar |
 |
400 bar, 400l/min 100 bar, 400l/min |
150-400 bar 10-100 bar |

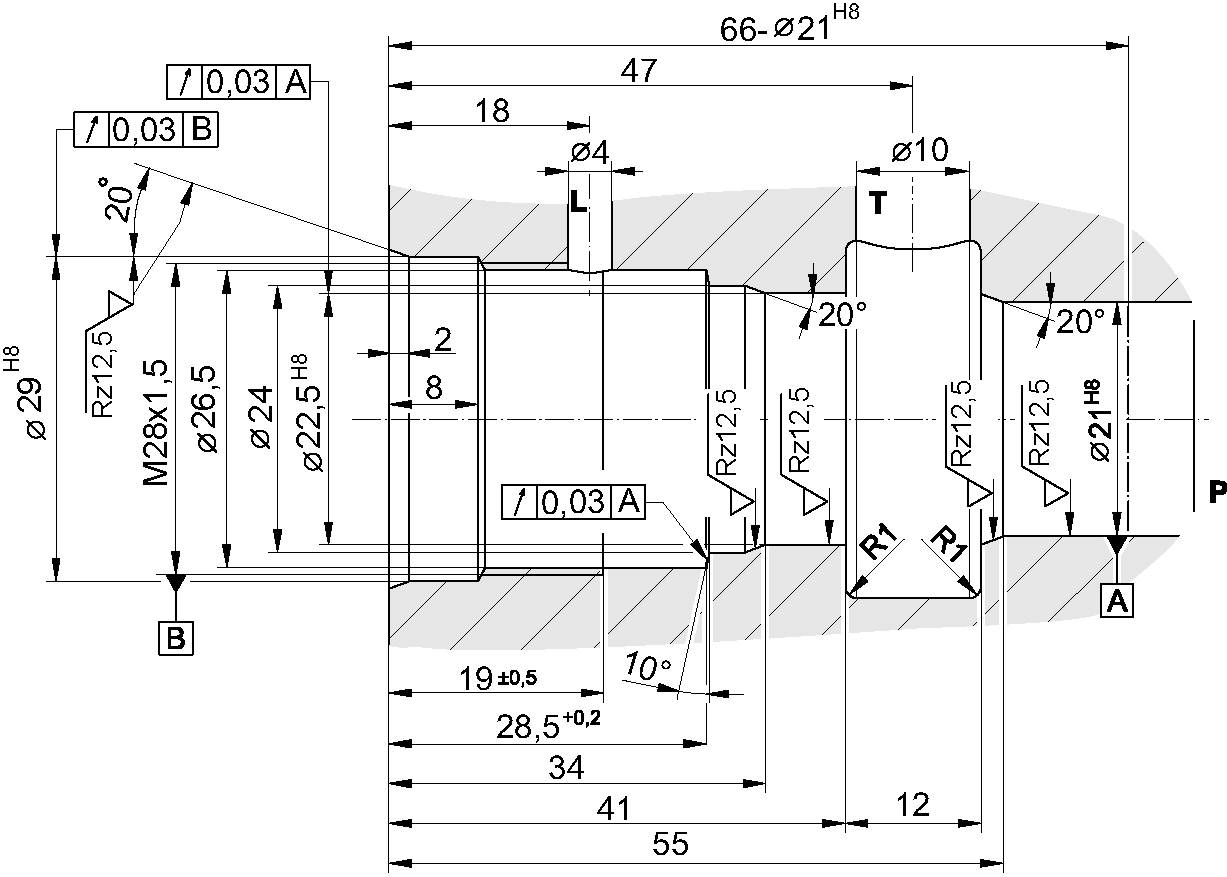

Stepped bore |

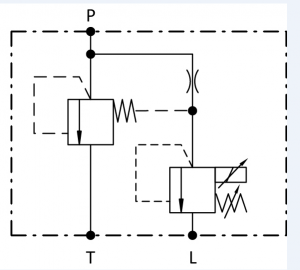

| PRV1PI | elektrical proportional adjustable |  |
400 bar, 400l/min | 150-400bar | Stepped bore |
Example of Application
In the simplest variant, a single-acting consumer (Example 1) is protected. For this purpose, the valve is installed in the pressure line to the consumer and connected to the tank. It is also possible to limit the maximum pressure for a specific attachment tool (example 2) – when the valve is switched, the pressure is limited. This is useful if the factory setting of the machine is not to be changed. Housings for two valves are available for double-acting consumers such as shears, crushers and other tools
Application
- Pressure protection of various consumers
- Single-acting consumers such as hammer
- Double acting consumers, e.g. shears, pulverizer
