Pressure Relief Valves PRV-1DI
Product Description
Pressure relief valves type PRV-1DI are a direct operated valve in a body with SAE or G connection. The valves are available for different pressure ranges up to a maximum pressure of 420 bar. The valves are used to protect hydraulic systems and consumers from overload or dynamic peak pressures.
Chracteristics
- Pressure relief valve in a body
- High pressure resistance(PRV-1DIA up to 420 bar
- SAE 3/4″, 1″, 1 1/4″, G3/8″ connection
Function
| Design | Function | Hydraulic schematic | P max, Q max | Adjustable range | Datasheet |
|---|---|---|---|---|---|

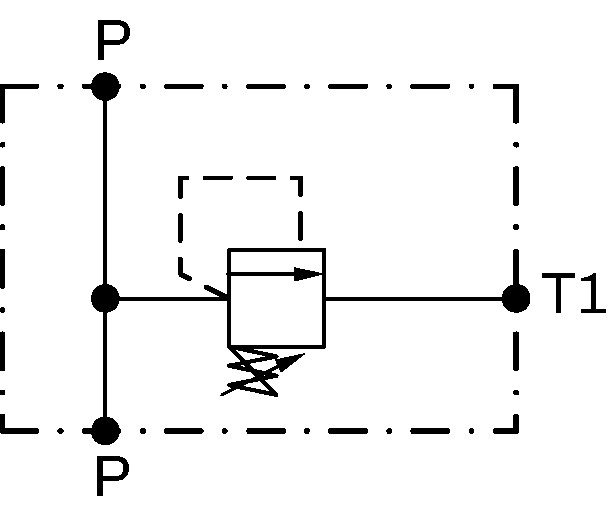

| PRV-1DIA | SAE 3/4″ manually adjustable |  |
420 bar, 80l/min | 20-420 bar |  |

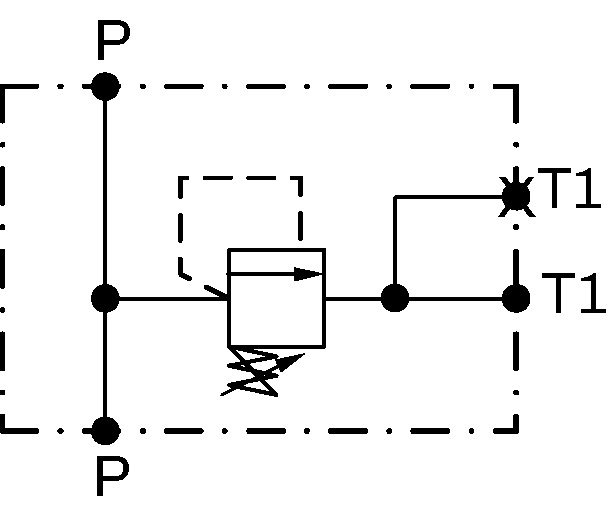

| PRV-1DIA | SAE 1″ manually adjustable |  |
420 bar, 80l/min | 20-420 bar | |

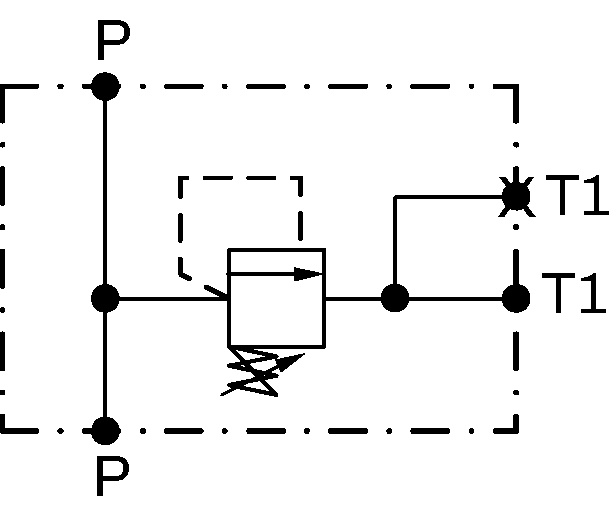

| PRV-1DIA | SAE 1 1/4″ manually adjustable |  |
420 bar, 80l/min | 20-420 bar | |
| PRV-1DIB | G 3/8″ |  |
250 bar, 50l/min | 120-250 bar | |
Application
- Pressure protection of any consumer
