WESSEL Directional Spool Valves Cetop NG10
Product Description
With directional control valves 4/2 and 4/3, dual-acting consumers can be operated or pilot control signals can be manipulated.
Characteristics
- CETOP standard NG10 DIN 24349
- Maximum pressure 350 bar
- Maximum flow 140l/min
Technical specifications

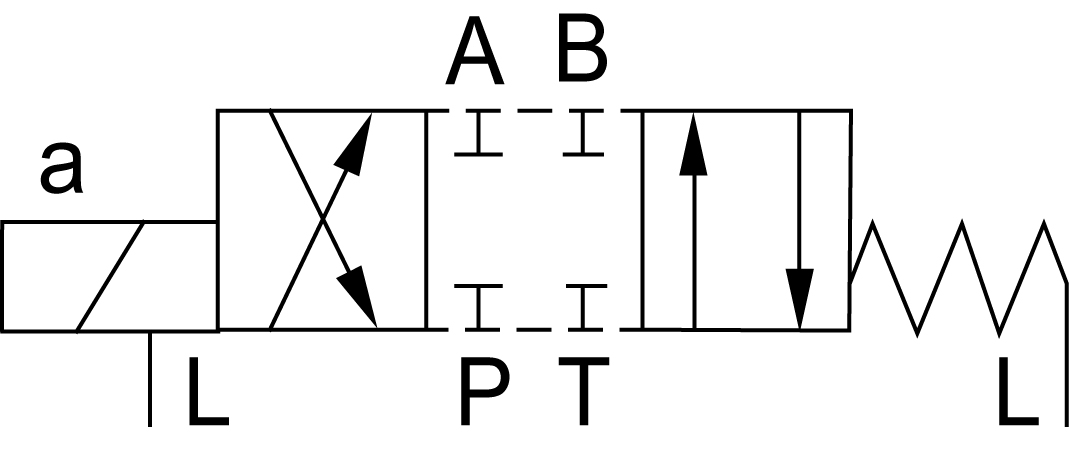

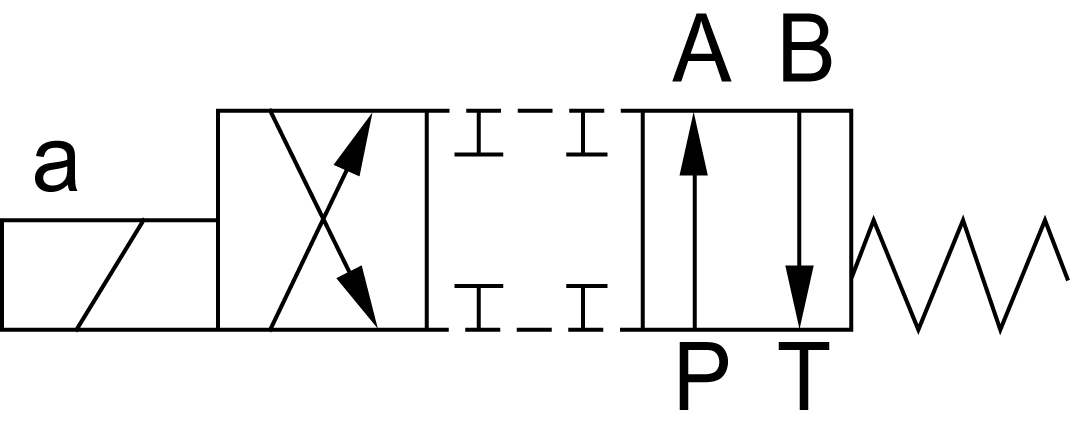

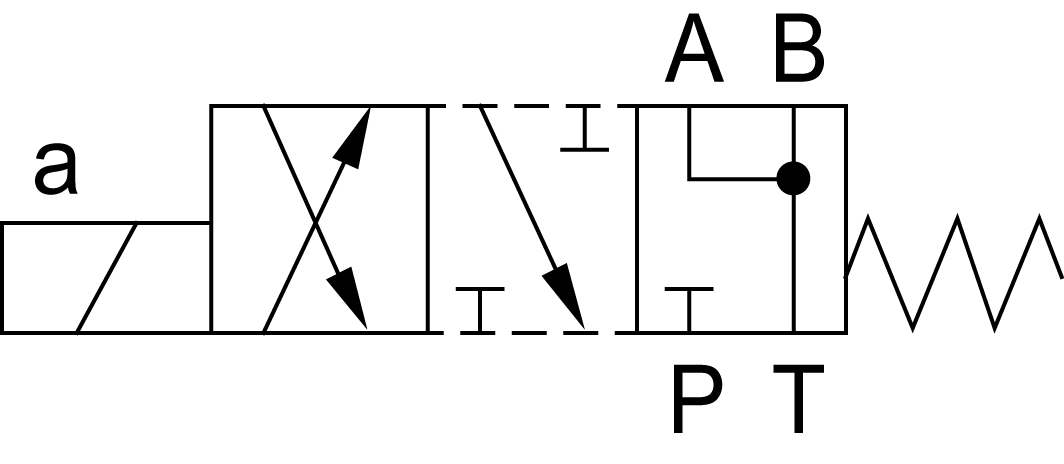

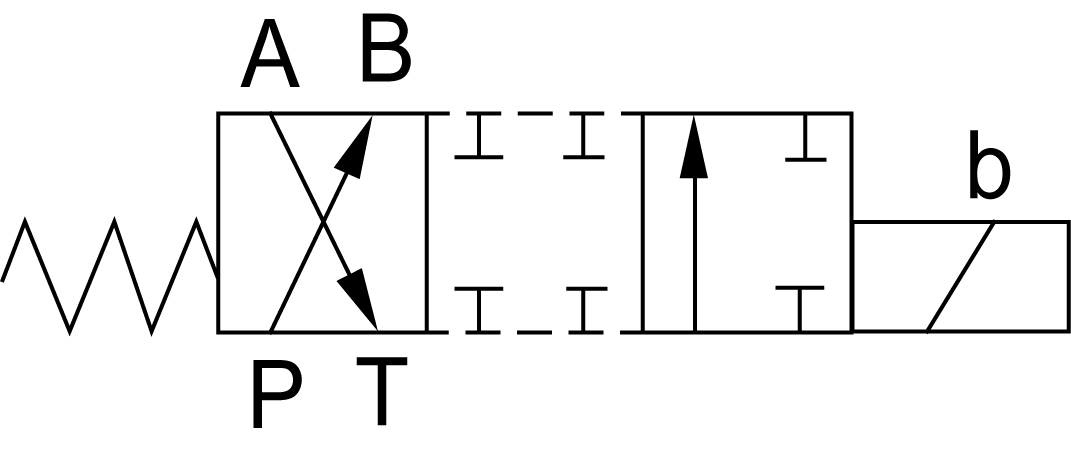

| part number | Designation | circuit diagram | Code | Volt | Special Version |
|---|---|---|---|---|---|
| 285.502.000.6 | Directional Control Valve NG10, S4/2 |
 |
104 | 12 | DIN plug |
| 285.501.000.6 | Directional Control Valve NG10, S4/2 |
 |
100 | 24 | DIN plug |
| 285.507.000.6 | Directional Control Valve NG10, S4/2 |
|
100 | 24 | Deutsch plug DT04-2P |
| 285.903.000.6 | Directional Control Valve NG10, S4/2 |
 |
102 | 12 | DIN plug |
| 243.310.301.9 | Directional Control Valve NG10, S4/2 |
 |
103 | 24 | DIN plug, NOTE: Only two connections may be loaded with 420 bar. The fastening screws must comply with 12.9. The clamping length of the screws is important for the calculation and should be maintained. |
