WESSEL Cetop Dierectional Spool Valves Typ D42 S4/2-S4/3
Description
- CETOP standard NG06 DIN 24349
- High pressure resistance up to 420 bar
- Max. Flow rate 40 l / min
Technical specifications

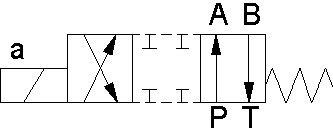

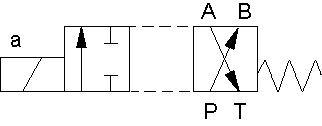

| Part Number | Circuit symbol | Special version | Code | Volt |
|---|---|---|---|---|
| 285.641.000.6 |  |
DIN Stecker | 001 | 24 |
| 285.627.000.6 | |
DIN Stecker | 001 | 13 |
| 285.628.000.6 | |
DEUTSCH Stecker DT04-2P | 001 | 24 |
| 271.310.301.8E | |
Qmax.=40l/min (10,5 usgal/min), Pmax.=420bar (6000psi) DIN Stecker |
001 | 24 |
| 285.618.000.6 |  |
DIN Stecker | 006 | 24 |
